BAYTAP-08 Demo
Uses earthscopestraintools library to
download strainmeter data and pressure data in miniseed format
convert raw data to units of strain
detrend and automatically estimate and remove offsets to create inputs for BAYTAP-08
use BAYTAP-08 to calculate the tidal constituents and pressure response coefficients
generate and remove trend, tidal (using SPOTL), pressure, and offset correction time series from original data
Not yet implemented here:
calculate signal-to-noise ratio for M2 and O1 tidal bands
containerized use of Cleanstrain+ for offset removal
[1]:
from earthscopestraintools.mseed_tools import ts_from_mseed
from earthscopestraintools.gtsm_metadata import GtsmMetadata
from earthscopestraintools.timeseries import plot_timeseries_comparison
import logging
logger = logging.getLogger()
logging.basicConfig(
format="%(message)s", level=logging.INFO
)
Download and prepare data
For BAYTAP, we want at least 3 months of continuous (non-gappy) strain and barometric pressure data
[2]:
#select a network, station, and time window
network = 'PB'
station = 'B073'
start="2015-07-01T00:00:00"
end = "2015-10-01T00:00:00"
#load the metadata for the station
meta = GtsmMetadata(network,station)
Uncorrected Strain data
[3]:
#load some 10 min data from miniseed, and view stats/plot
gauge_raw = ts_from_mseed(network=network, station=station, location='T0', channel='RS*', start=start, end=end)
gauge_raw.stats()

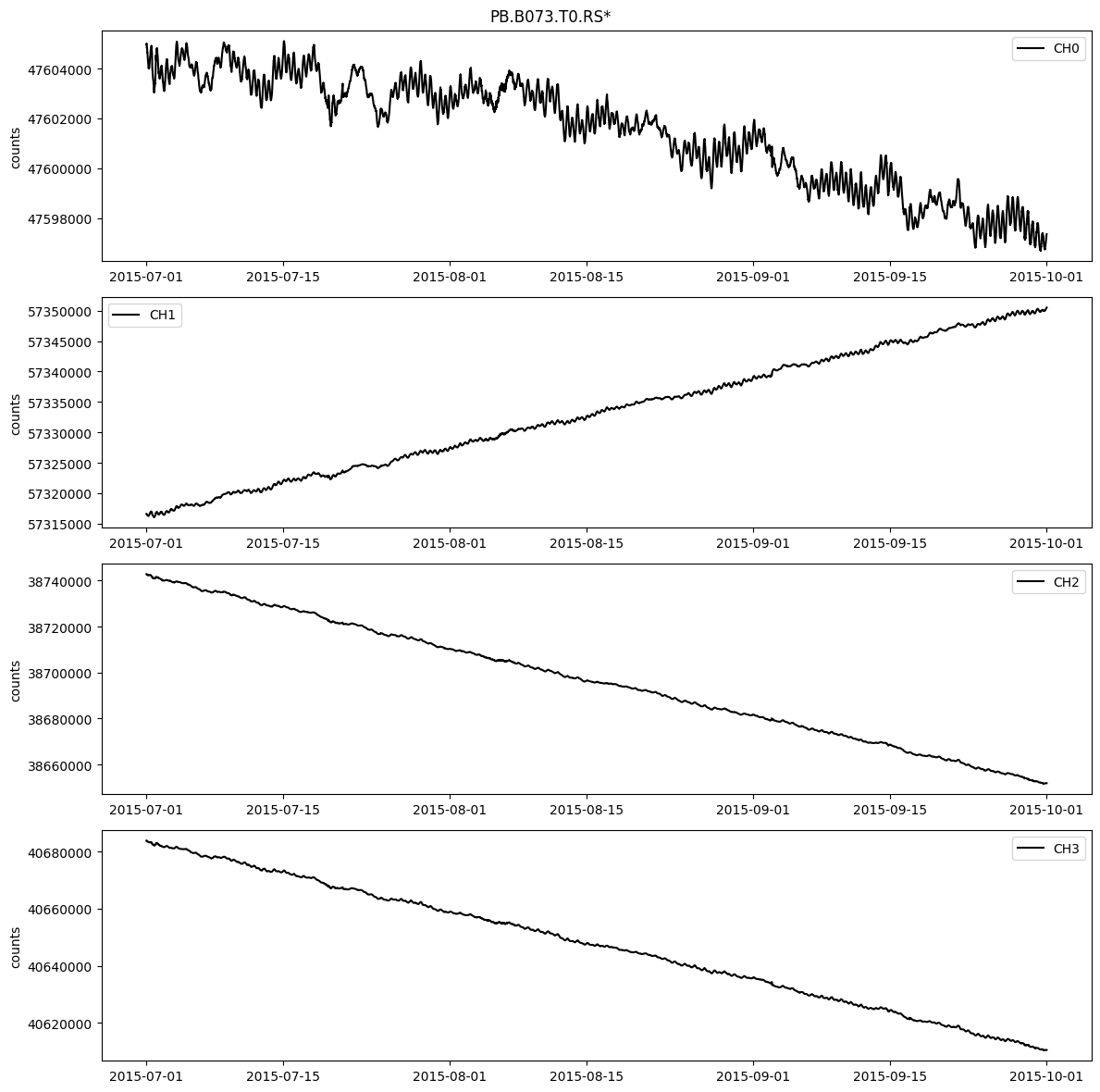

gauge_raw.plot()
PB B073 Loading T0 RS* from 2015-07-01T00:00:00 to 2015-10-01T00:00:00 from Earthscope DMC miniseed
Trace 1. 2015-07-01T00:00:00.000000Z:2015-10-01T00:00:00.000000Z mapping RS1 to CH0
Trace 2. 2015-07-01T00:00:00.000000Z:2015-10-01T00:00:00.000000Z mapping RS2 to CH1
Trace 3. 2015-07-01T00:00:00.000000Z:2015-10-01T00:00:00.000000Z mapping RS3 to CH2
Trace 4. 2015-07-01T00:00:00.000000Z:2015-10-01T00:00:00.000000Z mapping RS4 to CH3
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Converting missing data from 999999 to nan
Converting 999999 values to nan
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
PB.B073.T0.RS*
| Channels: ['CH0', 'CH1', 'CH2', 'CH3']
| TimeRange: 2015-07-01 00:00:00 - 2015-10-01 00:00:00 | Period: 600s
| Series: raw| Units: counts| Level: 0| Gaps: 0.0%
| Epochs: 13249| Good: 13249.0| Missing: 0.0| Interpolated: 0.0
| Samples: 52996| Good: 52996| Missing: 0| Interpolated: 0
[4]:
#apply a 2 hr lowpass butterworth filter to the data
name = f"{network}.{station}.gauge.filtered"
filt_cutoff_s = 2*60*60
gauge_filtered = gauge_raw.butterworth_filter(name=name,
filter_type='lowpass',
filter_order=5,
filter_cutoff_s=filt_cutoff_s)
#gauge_filtered.stats()
#gauge_filtered.plot()
Applying Butterworth Filter
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
[5]:
#decimate to hourly data, as this is sufficiently sampled for BAYTAP tidal/pressure analysis
name = f"{network}.{station}.gauge.decimated"
gauge_decimated = gauge_filtered.decimate_to_hourly(name=name)
gauge_decimated.stats()
#gauge_decimated.plot()
Decimating to hourly
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
PB.B073.gauge.decimated
| Channels: ['CH0', 'CH1', 'CH2', 'CH3']
| TimeRange: 2015-07-01 00:00:00 - 2015-10-01 00:00:00 | Period: 3600s
| Series: | Units: counts| Level: 1| Gaps: 0.0%
| Epochs: 2209| Good: 2209.0| Missing: 0.0| Interpolated: 0.0
| Samples: 8836| Good: 8836| Missing: 0| Interpolated: 0
[6]:
#convert digital counts to microstrain (Linearization) using some initial reference strains and physical information about the instrument
name = f"{network}.{station}.gauge.microstrain"
gauge_microstrain = gauge_decimated.linearize(reference_strains=meta.reference_strains, gap=meta.gap, name=name)
gauge_microstrain.stats()
gauge_microstrain.plot()
Converting raw counts to microstrain
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
PB.B073.gauge.microstrain
| Channels: ['CH0', 'CH1', 'CH2', 'CH3']
| TimeRange: 2015-07-01 00:00:00 - 2015-10-01 00:00:00 | Period: 3600s
| Series: microstrain| Units: microstrain| Level: 1| Gaps: 0.0%
| Epochs: 2209| Good: 2209.0| Missing: 0.0| Interpolated: 0.0
| Samples: 8836| Good: 8836| Missing: 0| Interpolated: 0
Initial trend correction
[7]:
name = f"{network}.{station}.gauge.trend_c"
trend_c = gauge_microstrain.linear_trend_correction(name=name)
trend_corrected = gauge_microstrain.apply_corrections([trend_c])
trend_corrected.plot()
Calculating linear trend correction
Trend Start: 2015-07-01 00:00:00
Trend End: 2015-10-01 00:00:00
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Initial offset correction
Offsets in this section are automatically detected via a simple first differencing algorithm. The best approach is to first correct for other known changes (tides, pressure, trend), then to apply the calculate_offsets function. This function finds jumps between consecutive datapoints that are above a cutoff limit, which is assigned from a user-specified value multiplied by a user-specified percentile of all first differences calculated for the gauge. For example, if a multiplier of 10 and percentile of 75% are used on a dataset whose first difference 75th percentile is 2 nanostrain, any jump in the data above 20 nanostrain will be flagged as an offset. This method is not perfect, but works well for certain situations.
[8]:
name = f"{network}.{station}.gauge.offset_c"
offset_c = trend_corrected.calculate_offsets(limit_multiplier=10, cutoff_percentile=0.75, name=name)
trend_offset_corrected = trend_corrected.apply_corrections([offset_c])
#offset_c.plot()

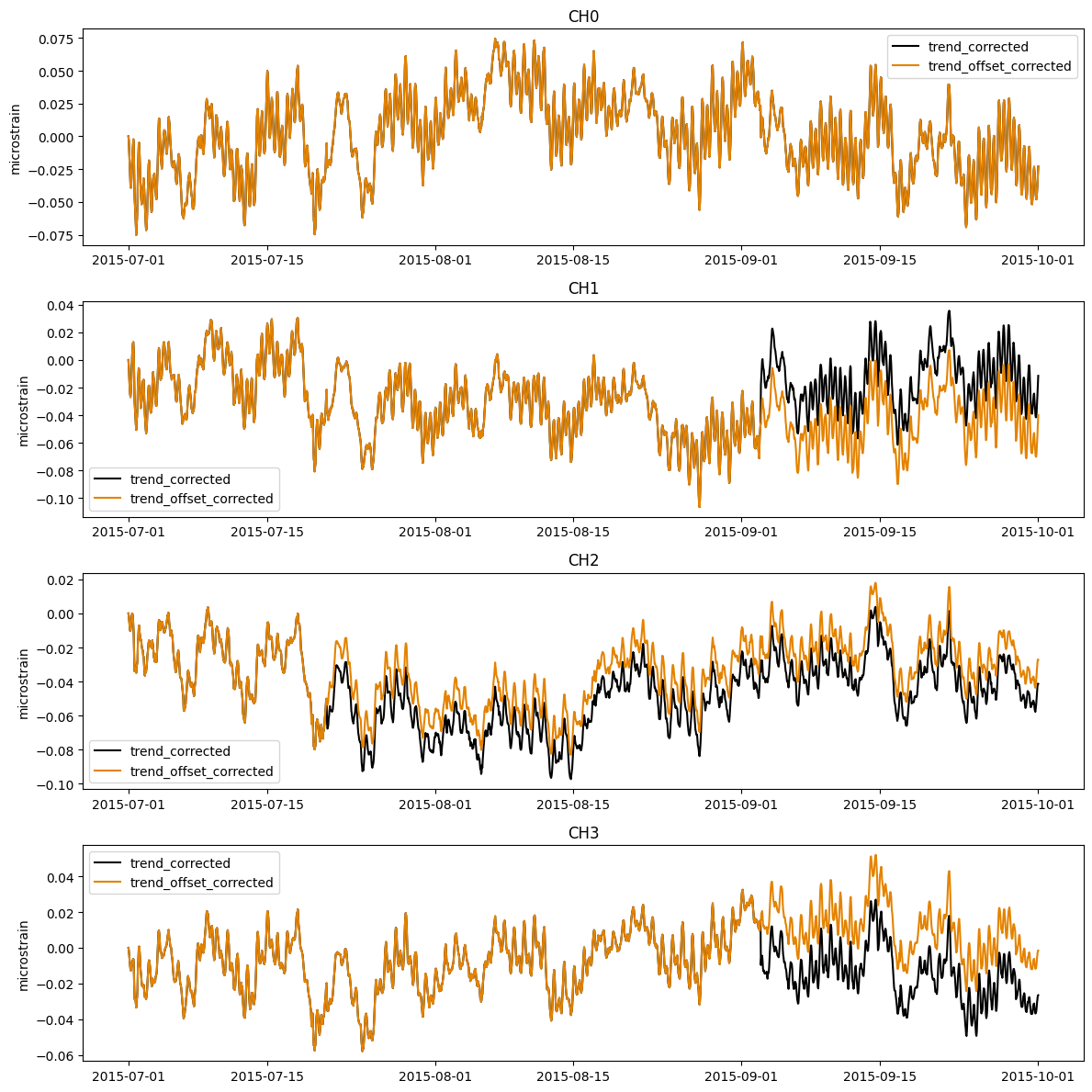

plot_timeseries_comparison([trend_corrected, trend_offset_corrected],
names=['trend_corrected', 'trend_offset_corrected',],
zero=True)
Calculating offsets using cutoff percentile of 0.75 and limit multiplier of 10.
Using offset limits of [0.036702, 0.027049, 0.013494, 0.015453]
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Barometric Pressure Data
[9]:
#download and prepare atmospheric pressure data, sampled at 30m by GTSM
atmp_raw = ts_from_mseed(network=network,
station=station,
location='TS',
channel='RDO',
period=1800,
start=start,
end=end,
scale_factor=0.001,
units='hPa')
atmp_raw.stats()
#atmp_raw.plot()
PB B073 Loading TS RDO from 2015-07-01T00:00:00 to 2015-10-01T00:00:00 from Earthscope DMC miniseed
Trace 1. 2015-07-01T00:00:00.000000Z:2015-10-01T00:00:00.000000Z mapping RDO to atmp
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Converting missing data from 999999 to nan
Converting 999999 values to nan
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
PB.B073.TS.RDO
| Channels: ['atmp']
| TimeRange: 2015-07-01 00:00:00 - 2015-10-01 00:00:00 | Period: 1800s
| Series: raw| Units: hPa| Level: 0| Gaps: 0.0%
| Epochs: 4417| Good: 4417.0| Missing: 0.0| Interpolated: 0.0
| Samples: 4417| Good: 4417| Missing: 0| Interpolated: 0
[10]:
name = f"{network}.{station}.atmp.decimated"
atmp_decimated = atmp_raw.decimate_to_hourly(name=name, )
atmp_decimated.stats()

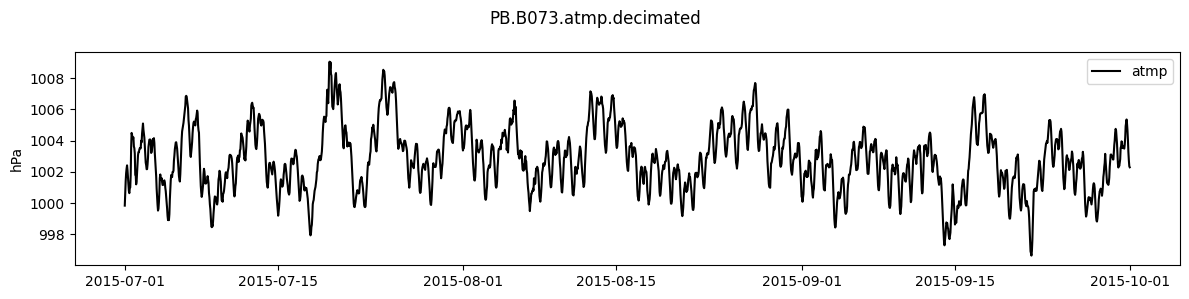

atmp_decimated.plot()
Decimating to hourly
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
PB.B073.atmp.decimated
| Channels: ['atmp']
| TimeRange: 2015-07-01 00:00:00 - 2015-10-01 00:00:00 | Period: 3600s
| Series: raw| Units: hPa| Level: 1| Gaps: 0.0%
| Epochs: 2209| Good: 2209.0| Missing: 0.0| Interpolated: 0.0
| Samples: 2209| Good: 2209| Missing: 0| Interpolated: 0
Run BAYTAP to calculate tidal parameters and pressure response
[11]:
#Requires docker. downloads and runs an image containing BAYTAP-08, and returns results as python dictionaries
#need to supply BAYTAP with strain data, pressure data, as well as lat/long/elev for station
results = trend_offset_corrected.baytap_analysis(atmp_ts=atmp_decimated,
latitude=meta.latitude,
longitude=meta.longitude,
elevation=meta.elevation
)
results
Please note, this method expects continuous data in microstrain and pressure in hPa.
4a85502584897919dd22518a0b688b748b994dc27586c592c9ee651ba33730ce
Docker container started.
Atmospheric pressure responses in microstrain/hPa and tidal parameters in degrees/nanostrain
baytap
Docker processes finished. Container removed.
[11]:
{'atmp_response': {'CH0': -0.010378,
'CH1': -0.00841479,
'CH2': -0.00692327,
'CH3': -0.0067322},
'tidal_params': {('CH0', 'M2', 'phz'): '-172.251',
('CH0', 'M2', 'amp'): '10.461',
('CH0', 'M2', 'doodson'): '2 0 0 0 0 0',
('CH0', 'O1', 'phz'): '-166.851',
('CH0', 'O1', 'amp'): '2.979',
('CH0', 'O1', 'doodson'): '1-1 0 0 0 0',
('CH0', 'P1', 'phz'): '-172.640',
('CH0', 'P1', 'amp'): '2.827',
('CH0', 'P1', 'doodson'): '1 1-2 0 0 0',
('CH0', 'K1', 'phz'): '153.528',
('CH0', 'K1', 'amp'): '1.513',
('CH0', 'K1', 'doodson'): '1 1 0 0 0 0',
('CH0', 'N2', 'phz'): '-178.805',
('CH0', 'N2', 'amp'): '0.372',
('CH0', 'N2', 'doodson'): '2-1 0 1 0 0',
('CH0', 'S2', 'phz'): '-168.576',
('CH0', 'S2', 'amp'): '6.374',
('CH0', 'S2', 'doodson'): '2 2-2 0 0 0',
('CH1', 'M2', 'phz'): '-148.400',
('CH1', 'M2', 'amp'): '7.158',
('CH1', 'M2', 'doodson'): '2 0 0 0 0 0',
('CH1', 'O1', 'phz'): '139.545',
('CH1', 'O1', 'amp'): '3.870',
('CH1', 'O1', 'doodson'): '1-1 0 0 0 0',
('CH1', 'P1', 'phz'): '167.507',
('CH1', 'P1', 'amp'): '2.929',
('CH1', 'P1', 'doodson'): '1 1-2 0 0 0',
('CH1', 'K1', 'phz'): '120.981',
('CH1', 'K1', 'amp'): '5.159',
('CH1', 'K1', 'doodson'): '1 1 0 0 0 0',
('CH1', 'N2', 'phz'): '-133.408',
('CH1', 'N2', 'amp'): '0.252',
('CH1', 'N2', 'doodson'): '2-1 0 1 0 0',
('CH1', 'S2', 'phz'): '-152.475',
('CH1', 'S2', 'amp'): '3.240',
('CH1', 'S2', 'doodson'): '2 2-2 0 0 0',
('CH2', 'M2', 'phz'): '112.936',
('CH2', 'M2', 'amp'): '1.230',
('CH2', 'M2', 'doodson'): '2 0 0 0 0 0',
('CH2', 'O1', 'phz'): '-165.629',
('CH2', 'O1', 'amp'): '2.976',
('CH2', 'O1', 'doodson'): '1-1 0 0 0 0',
('CH2', 'P1', 'phz'): '-170.864',
('CH2', 'P1', 'amp'): '2.269',
('CH2', 'P1', 'doodson'): '1 1-2 0 0 0',
('CH2', 'K1', 'phz'): '175.151',
('CH2', 'K1', 'amp'): '2.045',
('CH2', 'K1', 'doodson'): '1 1 0 0 0 0',
('CH2', 'N2', 'phz'): '14.300',
('CH2', 'N2', 'amp'): '0.152',
('CH2', 'N2', 'doodson'): '2-1 0 1 0 0',
('CH2', 'S2', 'phz'): '111.065',
('CH2', 'S2', 'amp'): '1.261',
('CH2', 'S2', 'doodson'): '2 2-2 0 0 0',
('CH3', 'M2', 'phz'): '148.610',
('CH3', 'M2', 'amp'): '2.970',
('CH3', 'M2', 'doodson'): '2 0 0 0 0 0',
('CH3', 'O1', 'phz'): '-135.304',
('CH3', 'O1', 'amp'): '2.210',
('CH3', 'O1', 'doodson'): '1-1 0 0 0 0',
('CH3', 'P1', 'phz'): '-157.251',
('CH3', 'P1', 'amp'): '1.693',
('CH3', 'P1', 'doodson'): '1 1-2 0 0 0',
('CH3', 'K1', 'phz'): '-111.030',
('CH3', 'K1', 'amp'): '0.838',
('CH3', 'K1', 'doodson'): '1 1 0 0 0 0',
('CH3', 'N2', 'phz'): '91.333',
('CH3', 'N2', 'amp'): '0.135',
('CH3', 'N2', 'doodson'): '2-1 0 1 0 0',
('CH3', 'S2', 'phz'): '165.026',
('CH3', 'S2', 'amp'): '2.174',
('CH3', 'S2', 'doodson'): '2 2-2 0 0 0'}}
[12]:
#Compare pressure response results to those in published metadata
#There will be some differences since this is only based on a small window of data
print("Calculated:", results['atmp_response'])
print("Published:", meta.atmp_response)
Calculated: {'CH0': -0.010378, 'CH1': -0.00841479, 'CH2': -0.00692327, 'CH3': -0.0067322}
Published: {'CH0': -0.012, 'CH1': -0.01, 'CH2': -0.0079, 'CH3': -0.0076}
[13]:
#Compare tidal parameter results to those in the published metadata
#There will be some differences since this is only based on a small window of data
print("Calculated:", results['tidal_params'])
print("Published:", meta.tidal_params)
Calculated: {('CH0', 'M2', 'phz'): '-172.251', ('CH0', 'M2', 'amp'): '10.461', ('CH0', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH0', 'O1', 'phz'): '-166.851', ('CH0', 'O1', 'amp'): '2.979', ('CH0', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH0', 'P1', 'phz'): '-172.640', ('CH0', 'P1', 'amp'): '2.827', ('CH0', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH0', 'K1', 'phz'): '153.528', ('CH0', 'K1', 'amp'): '1.513', ('CH0', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH0', 'N2', 'phz'): '-178.805', ('CH0', 'N2', 'amp'): '0.372', ('CH0', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH0', 'S2', 'phz'): '-168.576', ('CH0', 'S2', 'amp'): '6.374', ('CH0', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH1', 'M2', 'phz'): '-148.400', ('CH1', 'M2', 'amp'): '7.158', ('CH1', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH1', 'O1', 'phz'): '139.545', ('CH1', 'O1', 'amp'): '3.870', ('CH1', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH1', 'P1', 'phz'): '167.507', ('CH1', 'P1', 'amp'): '2.929', ('CH1', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH1', 'K1', 'phz'): '120.981', ('CH1', 'K1', 'amp'): '5.159', ('CH1', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH1', 'N2', 'phz'): '-133.408', ('CH1', 'N2', 'amp'): '0.252', ('CH1', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH1', 'S2', 'phz'): '-152.475', ('CH1', 'S2', 'amp'): '3.240', ('CH1', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH2', 'M2', 'phz'): '112.936', ('CH2', 'M2', 'amp'): '1.230', ('CH2', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH2', 'O1', 'phz'): '-165.629', ('CH2', 'O1', 'amp'): '2.976', ('CH2', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH2', 'P1', 'phz'): '-170.864', ('CH2', 'P1', 'amp'): '2.269', ('CH2', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH2', 'K1', 'phz'): '175.151', ('CH2', 'K1', 'amp'): '2.045', ('CH2', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH2', 'N2', 'phz'): '14.300', ('CH2', 'N2', 'amp'): '0.152', ('CH2', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH2', 'S2', 'phz'): '111.065', ('CH2', 'S2', 'amp'): '1.261', ('CH2', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH3', 'M2', 'phz'): '148.610', ('CH3', 'M2', 'amp'): '2.970', ('CH3', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH3', 'O1', 'phz'): '-135.304', ('CH3', 'O1', 'amp'): '2.210', ('CH3', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH3', 'P1', 'phz'): '-157.251', ('CH3', 'P1', 'amp'): '1.693', ('CH3', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH3', 'K1', 'phz'): '-111.030', ('CH3', 'K1', 'amp'): '0.838', ('CH3', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH3', 'N2', 'phz'): '91.333', ('CH3', 'N2', 'amp'): '0.135', ('CH3', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH3', 'S2', 'phz'): '165.026', ('CH3', 'S2', 'amp'): '2.174', ('CH3', 'S2', 'doodson'): '2 2-2 0 0 0'}
Published: {('CH0', 'M2', 'phz'): '-172.163', ('CH0', 'M2', 'amp'): '10.679', ('CH0', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH0', 'O1', 'phz'): '-167.318', ('CH0', 'O1', 'amp'): '2.925', ('CH0', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH0', 'P1', 'phz'): '-175.695', ('CH0', 'P1', 'amp'): '1.056', ('CH0', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH0', 'K1', 'phz'): '-160.382', ('CH0', 'K1', 'amp'): '2.704', ('CH0', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH0', 'N2', 'phz'): '179.368', ('CH0', 'N2', 'amp'): '1.958', ('CH0', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH0', 'S2', 'phz'): '-175.747', ('CH0', 'S2', 'amp'): '6.275', ('CH0', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH1', 'M2', 'phz'): '-148.679', ('CH1', 'M2', 'amp'): '7.809', ('CH1', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH1', 'O1', 'phz'): '143.932', ('CH1', 'O1', 'amp'): '4.237', ('CH1', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH1', 'P1', 'phz'): '139.121', ('CH1', 'P1', 'amp'): '1.976', ('CH1', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH1', 'K1', 'phz'): '140.482', ('CH1', 'K1', 'amp'): '5.156', ('CH1', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH1', 'N2', 'phz'): '-144.761', ('CH1', 'N2', 'amp'): '1.825', ('CH1', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH1', 'S2', 'phz'): '-167.968', ('CH1', 'S2', 'amp'): '3.057', ('CH1', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH2', 'M2', 'phz'): '109.445', ('CH2', 'M2', 'amp'): '1.133', ('CH2', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH2', 'O1', 'phz'): '-161.871', ('CH2', 'O1', 'amp'): '2.992', ('CH2', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH2', 'P1', 'phz'): '-169.262', ('CH2', 'P1', 'amp'): '0.921', ('CH2', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH2', 'K1', 'phz'): '-160.883', ('CH2', 'K1', 'amp'): '2.624', ('CH2', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH2', 'N2', 'phz'): '9.367', ('CH2', 'N2', 'amp'): '0.347', ('CH2', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH2', 'S2', 'phz'): '104.976', ('CH2', 'S2', 'amp'): '1.799', ('CH2', 'S2', 'doodson'): '2 2-2 0 0 0', ('CH3', 'M2', 'phz'): '151.372', ('CH3', 'M2', 'amp'): '2.959', ('CH3', 'M2', 'doodson'): '2 0 0 0 0 0', ('CH3', 'O1', 'phz'): '-135.281', ('CH3', 'O1', 'amp'): '2.413', ('CH3', 'O1', 'doodson'): '1-1 0 0 0 0', ('CH3', 'P1', 'phz'): '-127.049', ('CH3', 'P1', 'amp'): '0.682', ('CH3', 'P1', 'doodson'): '1 1-2 0 0 0', ('CH3', 'K1', 'phz'): '-118.362', ('CH3', 'K1', 'amp'): '2.351', ('CH3', 'K1', 'doodson'): '1 1 0 0 0 0', ('CH3', 'N2', 'phz'): '106.439', ('CH3', 'N2', 'amp'): '0.452', ('CH3', 'N2', 'doodson'): '2-1 0 1 0 0', ('CH3', 'S2', 'phz'): '152.039', ('CH3', 'S2', 'amp'): '2.334', ('CH3', 'S2', 'doodson'): '2 2-2 0 0 0'}
Calculate and plot corrections
Start from the original gauge microstrain

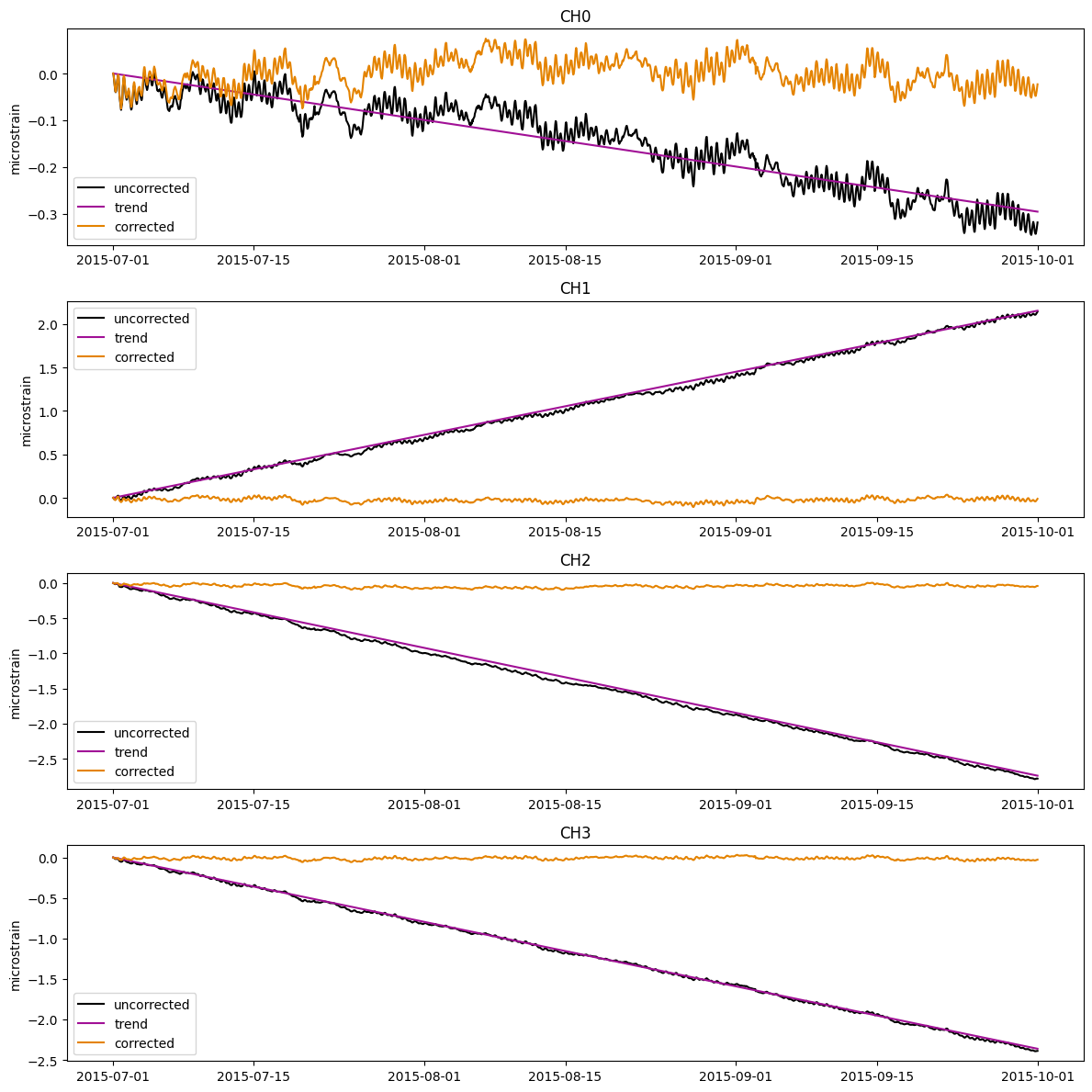

Calculate a simple linear trend correction
[14]:
name = f"{network}.{station}.gauge.trend_c"
trend_c = gauge_microstrain.linear_trend_correction(name=name)
trend_corrected = gauge_microstrain.apply_corrections([trend_c])
plot_timeseries_comparison([gauge_microstrain, trend_c, trend_corrected], names=['uncorrected', 'trend', 'corrected'], zero=True)
Calculating linear trend correction
Trend Start: 2015-07-01 00:00:00
Trend End: 2015-10-01 00:00:00
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Calculate a pressure correction using the generated pressure responses
[15]:
name = f"{network}.{station}.gauge.atmp_c"
atmp_c = atmp_decimated.calculate_pressure_correction(results['atmp_response'], name=name)
trend_atmp_corrected = trend_corrected.apply_corrections([atmp_c])
plot_timeseries_comparison([trend_corrected, trend_atmp_corrected],
names=['trend_corrected', 'trend_atmp_corrected'],
zero=True)
Calculating pressure correction
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Calculate a tidal correction using the generated tidal parameters
This function downloads and runs a SPOTL image, and uses the hartid program to generate a timeseries of predicted tides at this location
[16]:
name = f"{network}.{station}.gauge.tide_c"
tide_c = trend_atmp_corrected.calculate_tide_correction(tidal_parameters=results['tidal_params'], longitude=meta.longitude, name=name)
trend_atmp_tide_corrected = trend_atmp_corrected.apply_corrections([tide_c])
plot_timeseries_comparison([trend_atmp_corrected, trend_atmp_tide_corrected],
names=['trend_atmp_corrected', 'trend_atmp_tide_corrected',],
zero=True)
Calculating tide correction
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Calculate offsets
Offsets in this section are automatically detected via a simple first differencing algorithm. The best approach is to first correct for other known changes (tides, pressure, trend), then to apply the calculate_offsets function. This function finds jumps between consecutive datapoints that are above a cutoff limit, which is assigned from a user-specified value multiplied by a user-specified percentile of all first differences calculated for the gauge. For example, if a multiplier of 10 and percentile of 75% are used on a dataset whose first difference 75th percentile is 2 nanostrain, any jump in the data above 20 nanostrain will be flagged as an offset. This method is not perfect, but works well for certain situations.
[17]:
name = f"{network}.{station}.gauge.offset_c"
offset_c = trend_atmp_tide_corrected.calculate_offsets(limit_multiplier=10, cutoff_percentile=0.75, name=name)
trend_atmp_tide_offset_corrected = trend_atmp_tide_corrected.apply_corrections([offset_c])
#offset_c.plot()
plot_timeseries_comparison([trend_atmp_tide_corrected, trend_atmp_tide_offset_corrected],
names=['trend_atmp_tide_corrected', 'trend_atmp_tide_offset_corrected',],
zero=True)
Calculating offsets using cutoff percentile of 0.75 and limit multiplier of 10.
Using offset limits of [0.005026, 0.004768, 0.002659, 0.002213]
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%
Applying corrections
Found 0 epochs with nans, 0.0 epochs with 999999s, and 0 missing epochs.
Total missing data is 0.0%

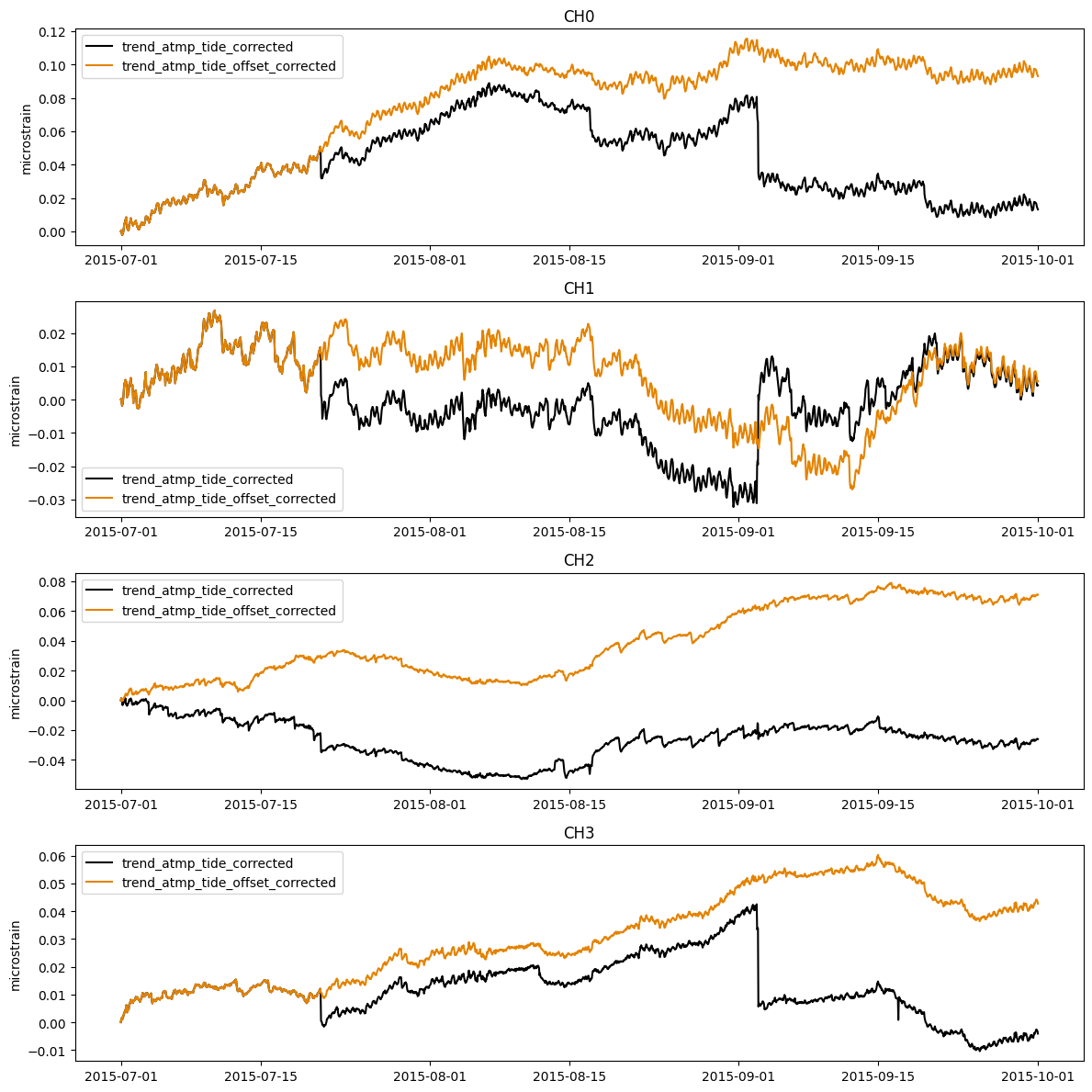

Plot fully corrected vs trend corrected data
[18]:
title=f"{network}.{station}.gauge.strains"
plot_timeseries_comparison([trend_corrected, trend_atmp_tide_offset_corrected],
title=title, names=['trend_corrected', 'trend_atmp_tide_offset_corrected'],
zero=True)
